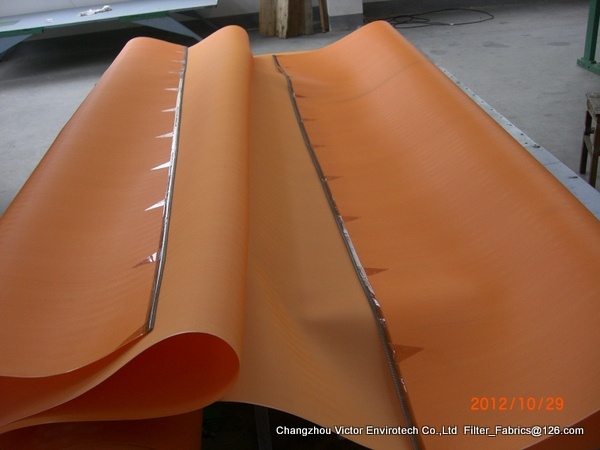

Product name : PET Filter Belt
Product No. : 201569153231
←[Previous Product]
Online Inquiry         Email Us

  Details:
 Our product been widely applied in follow fields:

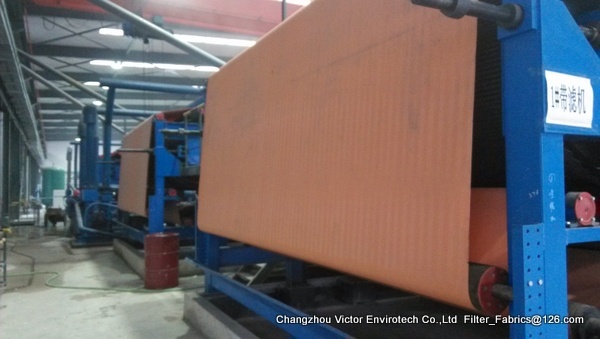

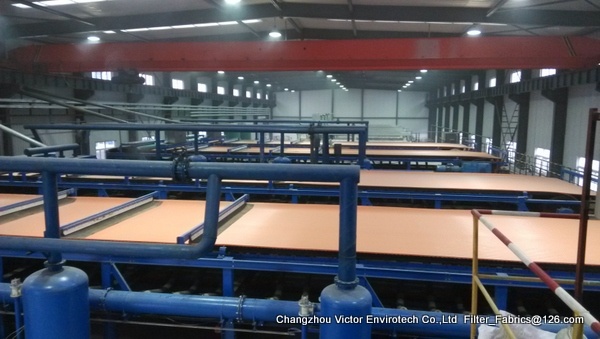

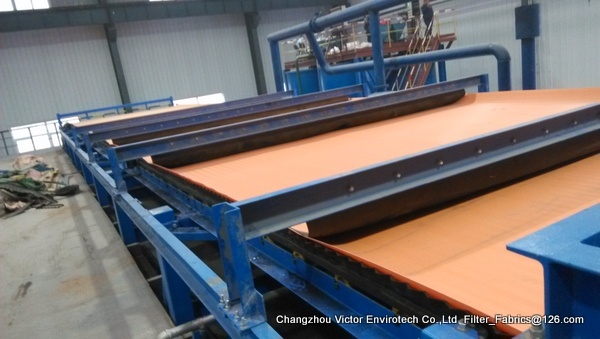

Sludge Dewatering:supporting to belt press filter,and widely used in municipal wastewater treatment plan,Power Station,Steel Plant,Paper-making,mining,Metallurgy, Petroleum,Chemical,Textile printing and dyeing,food,medicine,ceramics and other industries.

Apply to filtering the flue gas desulfurization of power plant, and electroplating wastewater.Now,our products widly applied in many power stations which belong to the five major power group.

The craft filteration of large-scale industrial production:supporting to kinds filter,then widly applied in tailings, coal washing, paper cleaning grouting, alumina, phosphate, potash, juice press, medicine, filtering, drying sterilization of food, citric acid, filters, cornstarch, vegetable oil production, sludge drying and filtration industries.



Our products are also exported to Australia, the United StatesSouth AfricaBrazil, Europe,Southeast Asia and other countries and regions, and successfully applied to the Finnish DWT-ENGINEERING LTD, United Kingdom DELKOR, Germany BELLMER companies such as filtering devices.High praised by users.

   Monofilament Polyester Belt/Mesh Technical Data
New Style Warp Yarn Weft Yarn Threads/10cm AP 127Pa AP 200Pa Thickness mm Weightg/m2 Breaking elongation% 定率伸长率
  Warp Weft L/m2/S L/m2/S N/cm 5kg/cm
PT-815 PET0.7 PET0.9 160 52 1721-1858 2262-2398 2.00 1449 3634 28 0.46
PT-825 PET0.50 PET0.9 230 60 2083-2185 2752-2864 1.65 1170 2021 19 0.32
PT-835 PET0.50 PET0.8 255 77 1636-1741 2221-2327 1.83 1310 3312 19 0.66
PT-845 PET0.50 PET0.7 254 90 1619-1748 2212-2291 1.77 1280 2940 18 0.7
PT-845 PET 0.5 PET0.7 257 81 1776-1837 2317-2390 1.70-1.77 1201 3805 22 0.59
PT-855 PET PET 410 94 1035-1100 1394-1491 1.41 995 2653 16 0.24
PT-865 PET0.50 PET0.50 115 100 2092-2232 2719-2899 0.89 690 2198 24 0.53
PT-885B PETB0.66 PETB1.0 185 59 1500-1590 1900-2050 2.16-2.18 1667 4789 25 0.41
PT-895 PET0.28 PET0.32 400 190 400-450 500-600 0.77 633 1867 19 0.45
PT-895 PET0.28 PET0.32 400 180 392-424 548-594 0.77 625 1806 19 0.44
PT-895 PET0.28 PET0.32 400 195 261-273 377-393 0.77 655 2028 19 0.25
PT-871 PETB0.8 PETB0.8 60 60 3797-3935 4902-5054 1.41-1.43 943 2593 33 0.56
PT-872 PET0.28*0.5B PET+Multi 230 80+80 181-220 250-310 1.3 990 2157 27 0.51
PT-872 PET0.28*0.5B PET+Multi 232 78+78 260-310 370-450 1.3 1005 2329 22 0.61
PT-872 PET0.28*0.5B PET+Multi 231 81+81 189-214 262-291 1.3 1022 1777 20 0.32
PT-872B PET0.28*0.5B PET+Multi 231 81+81 160-210 220-260 1.28-1.29   2181 23 0.37
PT-872 PET0.27*0.53W PET0.5+WMulti 223 86+86 100-150 150-220 1.3-1.32 1075 1761 17 0.33
PT-D20 PET0.2+0.35 PET0.2+0.45 700 258 1320-1410 1840-1920 1.66-1.99 660 2357 15 0.49
PT-874B PET1.0B PET1.0B 31 35     1.78-1.80 774 1805 25 0.8
PT-875 PET0.50 PET0.50 96 103 3150-3240 4070-4190 0.89 627 1957 34 0.93
PT-873 PET0.48 0.55+Multi 301 200 140-170 211-244 1.74 1259 4740 18 0.53
PT-873 PET0.48 0.50+Multi 301 200 150-165 225-245 1.63-1.65 1336 4314 18 0.48
PT-873 PET0.48 0.50+300D*6 283 196 230-280 300-400 1.73-1.74 1293
PT-876 PET0.50 PET1.0O 241 75 1477-1586 1970-2166 2.22-2.25 1643 2966 26 0.97
PT-876 PET0.5 PET1.0B 241 75 1110-1230 1632 2.10-2.13 1657
PT-913 PA0.87*0.55 PA1.05+0.35 120 52 1680-1720 2220-2290 2.12-2.14 1268 3267 32 0.67
